Bestrap® R80
Bestrap® R80
Standard
UNI EN 13246 type 2.1
Features
Safety, certified quality and reliability: the most widely used steel strap on the packaging market.
Download table
Download packaging
table

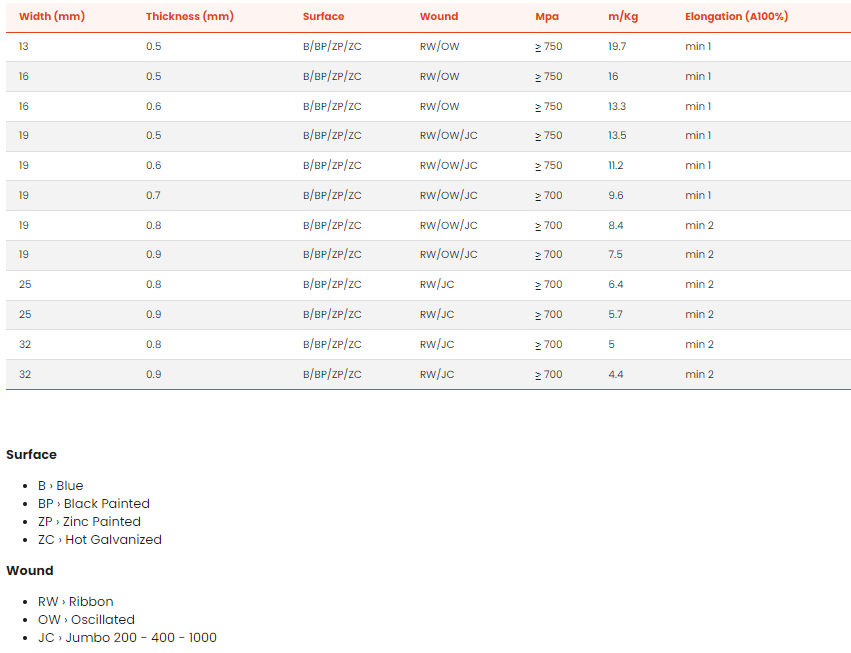

| Width (mm) | Thickness (mm) | Surface | Wound | Mpa | m/Kg | Elongation (A100%) |
| 13 | 0.5 | B/BP/ZP/ZC | RW/OW | ≥ 750 | 19.7 | min 1 |
| 16 | 0.5 | B/BP/ZP/ZC | RW/OW | ≥ 750 | 16 | min 1 |
| 16 | 0.6 | B/BP/ZP/ZC | RW/OW | ≥ 750 | 13.3 | min 1 |
| 19 | 0.5 | B/BP/ZP/ZC | RW/OW/JC | ≥ 750 | 13.5 | min 1 |
| 19 | 0.6 | B/BP/ZP/ZC | RW/OW/JC | ≥ 750 | 11.2 | min 1 |
| 19 | 0.7 | B/BP/ZP/ZC | RW/OW/JC | ≥ 700 | 9.6 | min 1 |
| 19 | 0.8 | B/BP/ZP/ZC | RW/OW/JC | ≥ 700 | 8.4 | min 2 |
| 19 | 0.9 | B/BP/ZP/ZC | RW/OW/JC | ≥ 700 | 7.5 | min 2 |
| 25 | 0.8 | B/BP/ZP/ZC | RW/JC | ≥ 700 | 6.4 | min 2 |
| 25 | 0.9 | B/BP/ZP/ZC | RW/JC | ≥ 700 | 5.7 | min 2 |
| 32 | 0.8 | B/BP/ZP/ZC | RW/JC | ≥ 700 | 5 | min 2 |
| 32 | 0.9 | B/BP/ZP/ZC | RW/JC | ≥ 700 | 4.4 | min 2 |
Surface
- B › Blue
- BP › Black Painted
- ZP › Zinc Painted
- ZC › Hot Galvanized
Wound
- RW › Ribbon
- OW › Oscillated
- JC › Jumbo 200 - 400 - 1000
Packaging
